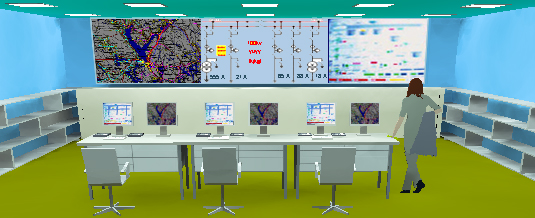

SCADA - complete solutions to monitor and manage in real-time

A Building Management System (BMS) is a computer-based control system installed in buildings that controls and monitors the building’s mechanical and electrical equipment such as ventilation, lighting, power systems, fire systems, and security systems.

Protection

• Overcurrent and Earth Fault Protection
• Busbar Differential Protection

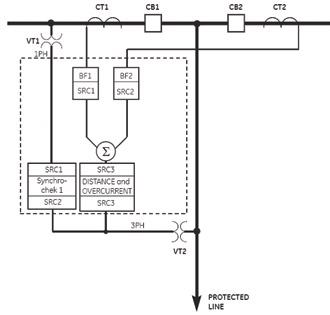

• Distance Protection
• Generator / Motor Protection
• Line Differential and Phase Comparison
• Overcurrent / Multifunction / Motor Protection
• Transformer Differential Protection
• Transformer Protection and Control

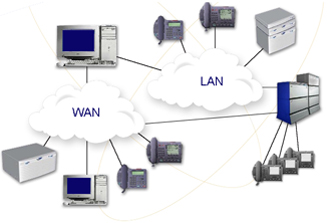

Communication

Communication takes place with the following physical interfaces

• RS 232,
• RS 485,
• RS 422,
• ETHERNET,
• WLAN,
• DALI,
• EIB /KNX,

Used to communicate the following physical media

• Copper cable
• Fiber
• RF channels
• Radio networks, including GPRS and WLAN-networks

Data exchange with IED may be used the following communication protocols

• IEC 2207 - communication with the electrometers
• IEC 60870-5-202 - communication with controllers and intelligent sensors
• IEC 60870-5-202 - communication with the electrometers in the networks
• EC 60870-5-203 - communication with the digital relay protection, and others
• IEC 62386 - DALI stands for Digital Addressable Lighting Interface and is a protocol.
• CENELEC EN 50090 and CEN EN 23322-2 - KNX – the Worldwide STANDARD for Home and Building Control.

Data exchange with adjacent sites and command stations located at a higher system level, the following protocols can be used:

• IEC 60870-5-202
• IEC 60870-5-204
• Telegyr 709S
• Telegyr 80X

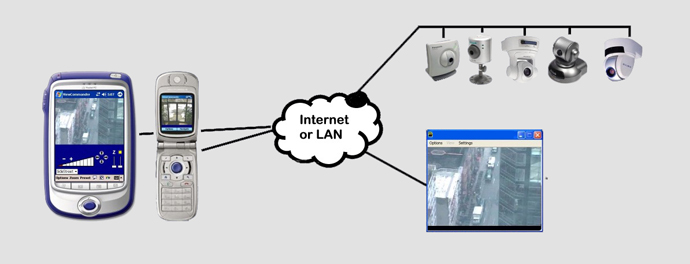

Remote Video Monitoring

• Systems for video surveillance from anywhere and in real time
